Monel Flanges Importer and Supplier in India - Nippon Alloys Inc
Nippon Alloys Inc is a trusted and reputed Monel Flanges Importer in India. We supply high-quality Monel Flanges that meet international standards such as ASTM, ASME, ANSI, EU, DIN, IS, ISO, and JIS. As one of the prominent importers and suppliers of Monel Flanges in India, we ensure competitive factory pricing and timely delivery. For instant quotes, contact us via Email or WhatsApp.

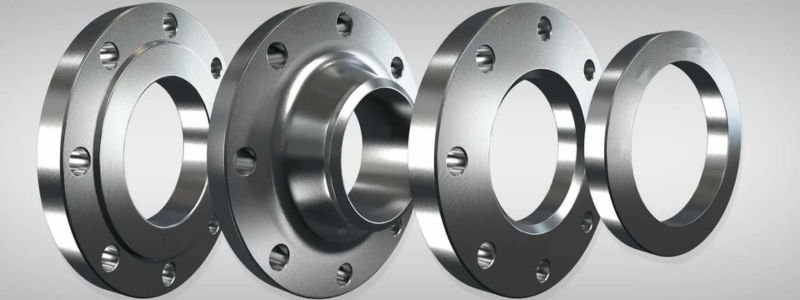

Monel Flanges Importer - Product Overview
As a reliable Monel Flanges Importer in India, we deliver flanges that exhibit excellent resistance to seawater, acidic environments, and high-temperature operations. These flanges are widely used in marine engineering, chemical processing, hydrocarbon services, heat exchangers, and offshore oil drilling industries. We stock various grades such as Monel 400 and Monel K500, ensuring precise dimensions, flawless finishes, and superior mechanical performance. Our strong supply network and in-stock inventory help us provide prompt delivery and cost-effective solutions tailored to your industrial requirements.
Monel Flanges Supplier: Specifications
- Standards: ASTM B564 / ASME SB564
- Size Range: Diameter from ½ inch to 48 inches (15 mm to 1200 mm)
- Pressure Class: 150#, 300#, 600#, 900#, 1500#, 2500#
- Dimensions: ANSI, ASME, DIN, EN, BS, JIS compliant
- Grades: Monel 400, Monel K500
- Surface Finish: Mill Finish, Smooth Finish, Bright Polished, Rust-Proof Coated
- Forms Available: Slip-On, Weld Neck, Blind, Socket Weld, Lap Joint, Threaded, and Custom Forged Flanges
Monel Flanges Importer - Equivalent Grades:
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | BS | JIS | EN |
|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 / 2.4361 | NU-30M | NA 13 | NW 4400 | NiCu30Fe |
| Monel K500 | N05500 | 2.4375 | – | NA 18 | NW 5500 | NiCu30Al |
Email: sales@nipponalloys.com
Number: +91-22-67437865
Flanges Importer - Uses
- Soldering or welding two sections of metal piping together can be done, however pipes joined this manner are highly prone to bursting under high pressures. Flanged ends that may be connected with bolts provide a more secure connection between two pieces of pipe. This manner, even if gases or liquids inside the pipe build up to high pressures, the pipe will usually hold.
- In cameras and other electronic equipment, flanges serve a specialised purpose. Though the flanges on these products do not generally have to withstand high pressures, they must hold tight to keep hazardous particles out. These flanges are used to join two dissimilar materials together, such as the glass of a lens and the remainder of the camera's body.
- Weld neck flanges are most commonly utilised in applications involving high pressure and the necessity for a long, tapered hub. When ordering, it is critical to specify the pipe schedule for which it will be used. Extreme temperature changes, as well as severe handling and bending, make this type of flange ideal for usage.
Monel Flanges Supplier in India - Nippon Alloys Inc
Nippon Alloys Inc is a leading importer of Monel Flanges in India. Since 2007, the company has specialized in supplying premium-quality flanges made exclusively from Monel, a nickel-copper alloy known for its exceptional corrosion resistance and strength.
Monel Flanges Importer - Chemical Properties
| Grade | Ni | Cu | Fe | C | Mn | Si | Al | Ti | S |
|---|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 28.0 - 34.0 | 2.5 max | 0.30 max | 2.0 max | 0.50 max | - | - | 0.024 max |
| Monel K500 | 63.0 min | 27.0 - 33.0 | 2.0 max | 0.25 max | 1.5 max | 0.50 max | 2.3 - 3.15 | 0.35 - 0.85 | 0.010 max |
Monel Flanges Importer - Mechanical Properties:
| Grade | Tensile Strength (psi) | 0.2% Yield Strength (psi) | Elongation (%) | Hardness (Rockwell B) |
|---|---|---|---|---|
| Monel 400 | 70,000 | 28,000 | 35 | 75 |
| Monel K500 | 110,000 | 80,000 | 20 | 96 |
Flanges Importer - Characteristics
- Plain Finish
- Flanges and flanged fittings shall be castings, forgings, or plates
- Bolting materials shall conform to ASME B16.5, Table 1B.
- Thicker coating of zinc provides higher resistance.
- The material for flanges in the pipeline service shall be suitable for welding. The carbon equivalents of the used flanges shall match with the pipe material
Nippon Alloys Inc is the Best Supplier of Monel Flanges in the Gulf Countries, European Nations, and the Asia Pacific region.
We maintain an extensive stock of Monel Flanges securely stored in our warehouses, ready for prompt shipment. Our products are widely used across industries such as Chemical, Petrochemical, Engineering, Nuclear Plants, Defence, and Aerospace. Monel Flanges are in high demand in Saudi Arabia, Oman, Qatar, Kuwait, Germany, Australia, the United Kingdom, Spain, Italy, and several other countries worldwide.
Monel Flanges Supplier in India
As one of the leading Monel Flanges stockists in India, we supply a broad range of high-performance flanges suitable for demanding industrial applications. These flanges offer exceptional strength and corrosion resistance in extreme environments with high temperatures and aggressive chemicals. We keep ready stock in various sizes and pressure ratings to ensure immediate availability. All Monel Flanges comply with international standards and are competitively priced across India.
Buy Monel Flanges from Nippon Alloys Inc
Nippon Alloys Inc ranks among the largest Monel Flanges suppliers in India, catering to domestic and international requirements. We operate warehousing hubs in key Indian cities to streamline delivery and logistics. Our 7-step quality assurance process, including third-party inspection, ensures that each flange meets the highest industry standards and client-specific specifications.
| Monel Flanges are supplied in the following cities - | |||||
|---|---|---|---|---|---|
| Mumbai | Bangalore | Hyderabad | Pune | Gandhinagar | Nashik |
| Chennai | Kolkata | Ahmedabad | Delhi | Thane | Vadodara |
| Jaipur | Surat | Chandigarh | Kochi | Vapi | Rajot |
| Visakhapatnam | Gurugram | Indore | Coimbatore | Kanpur | Rohtak |
| Agra | Lucknow | Bhubaneswar | Patna | Navi Mumbai | Vasai |
| Nagpur | Noida | Bhopal | Vijayawada | Ludhiana | Gujarat |
Please Note: The price of the products may vary depending on the size, material, grade and quantity or any other factor that may or may not increase the production costs and also, it can be changed depending on the marketing situation without any prior notice.*
